Crystal Oscillators

Quartz crystal oscillator (English: crystal oscillator), often identified as OSC, referred to as crystal oscillator. This product is already a complete active oscillator. After the voltage is applied, the output will directly output HCMOS/TTL/SINE WAVE/LVPECL/LVDS/ECL/CML/HCSL and other level signals according to the set parameters. The product is mainly composed of quartz wafer, pedestal, outer casing, conductive adhesive, silver/gold, RC, IC and other materials. According to the lead condition, it can be divided into two types: in-line (with lead) and surface mount (without lead).
All of 10 Results
Pic. Series Product introduction Datasheet

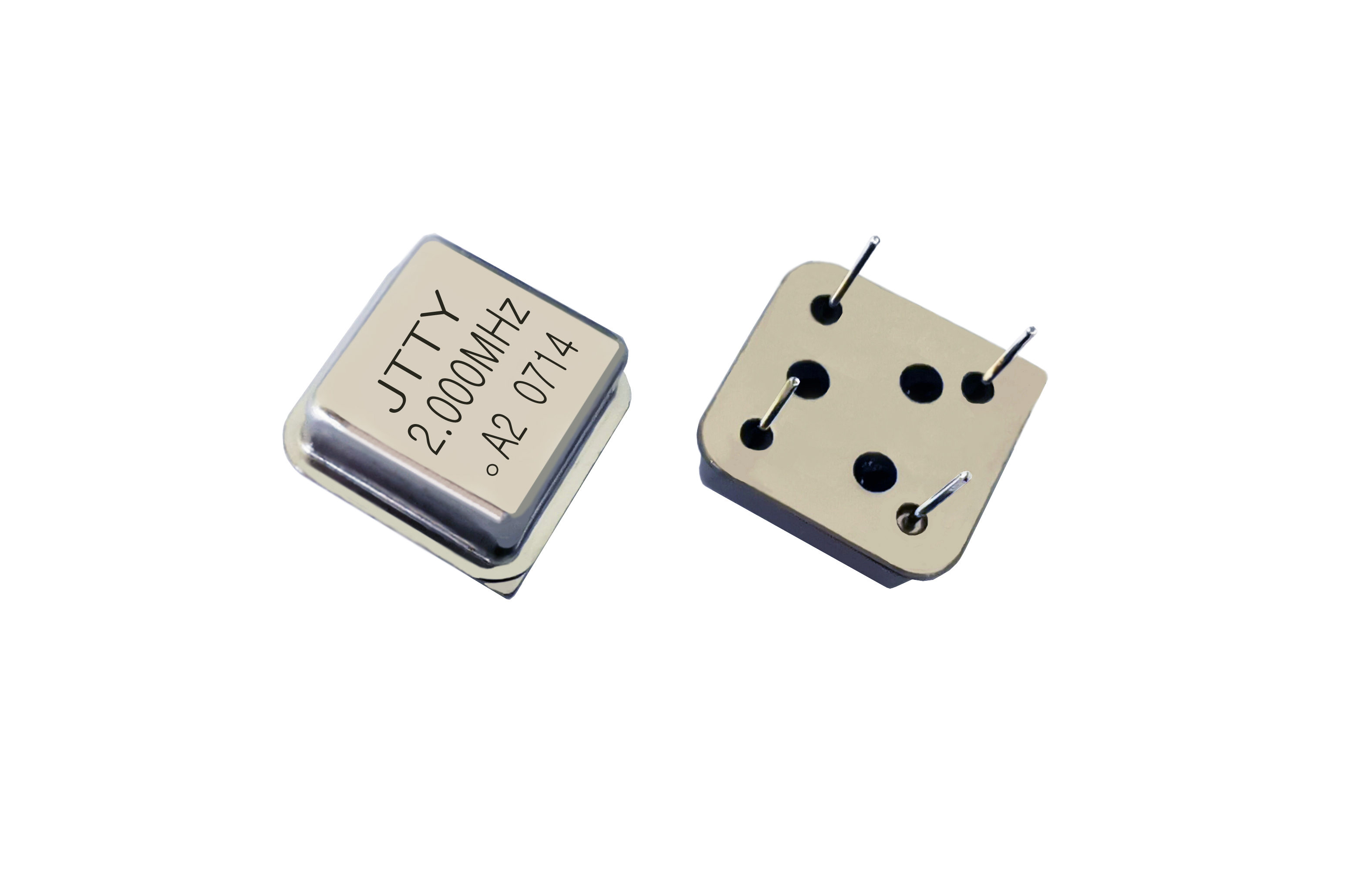

OD08 Package Size：12.8*12.8*5.5;Frequency：32.768KHz~220MHz;Supply Voltage：1.8V~5V;Frequency stability：±5ppm~±50ppm;Output Leve：HCMOS/TTL;working temperature：-55℃~+125℃;

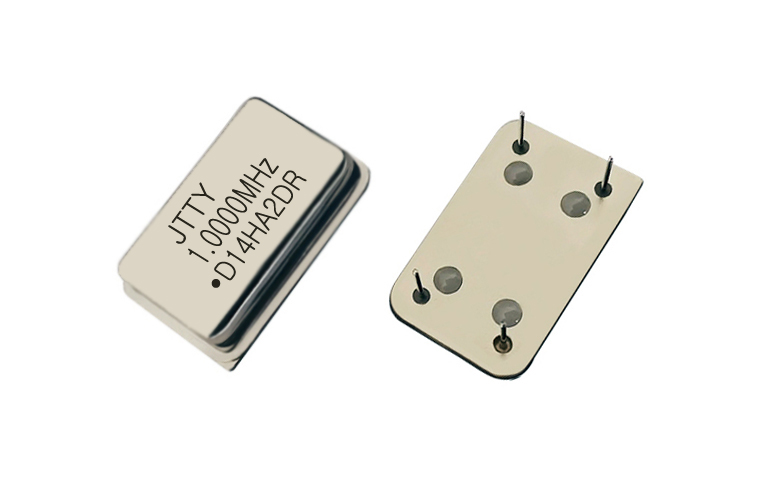

OD14 Package Size：20.2*12.8*5.08;Frequency：32.768KHz~220MHz;Supply Voltage：1.8V~5V;Frequency stability：±5ppm~±50ppm;Output Leve：HCMOS/TTL;working temperature：-55℃~+125℃;
OF22 Package Size：2.5*2.0*0.8;Frequency：32.768KHz~220MHz;Supply Voltage：1.8V~5V;Frequency stability：±5ppm~±50ppm;Output Leve：HCMOS/TTL;working temperature：-55℃~+125℃;
OF32 Package Size：3.2×2.5×1.1;Frequency：32.768KHz~400MHz;Supply Voltage：1.8V~5V;Frequency stability：±25 ～ ±50;Output Leve：HCMOS/TTL;working temperature：-55℃~+125℃;
OS32 Package Size：3.2×2.5×1.0;Frequency：10MHz~1500MHz;Supply Voltage：1.8V~5V;Frequency stability：±15ppm,±25ppm,±50ppm,±100ppm;Output Leve：LVPECL、LVDS、HCSL;working temperature：-55℃~+125℃;

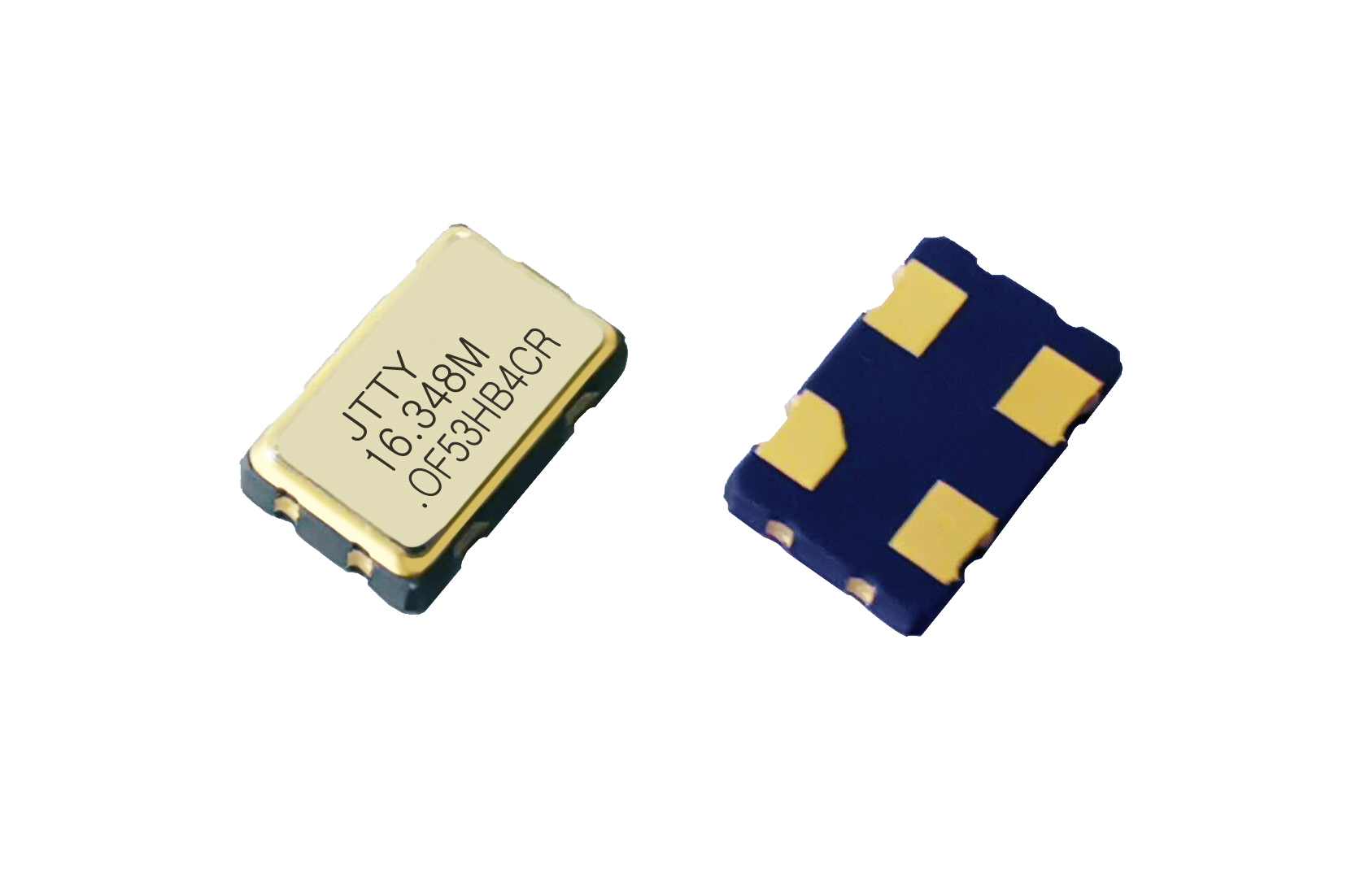

OF53 Package Size：5.0×3.2×1.2;Frequency：32.768KHz～220MHz;Supply Voltage：1.8V~5V;Frequency stability：±5ppm~±50ppm;Output Leve：HCMOS/TTL;working temperature：-55℃~+125℃;

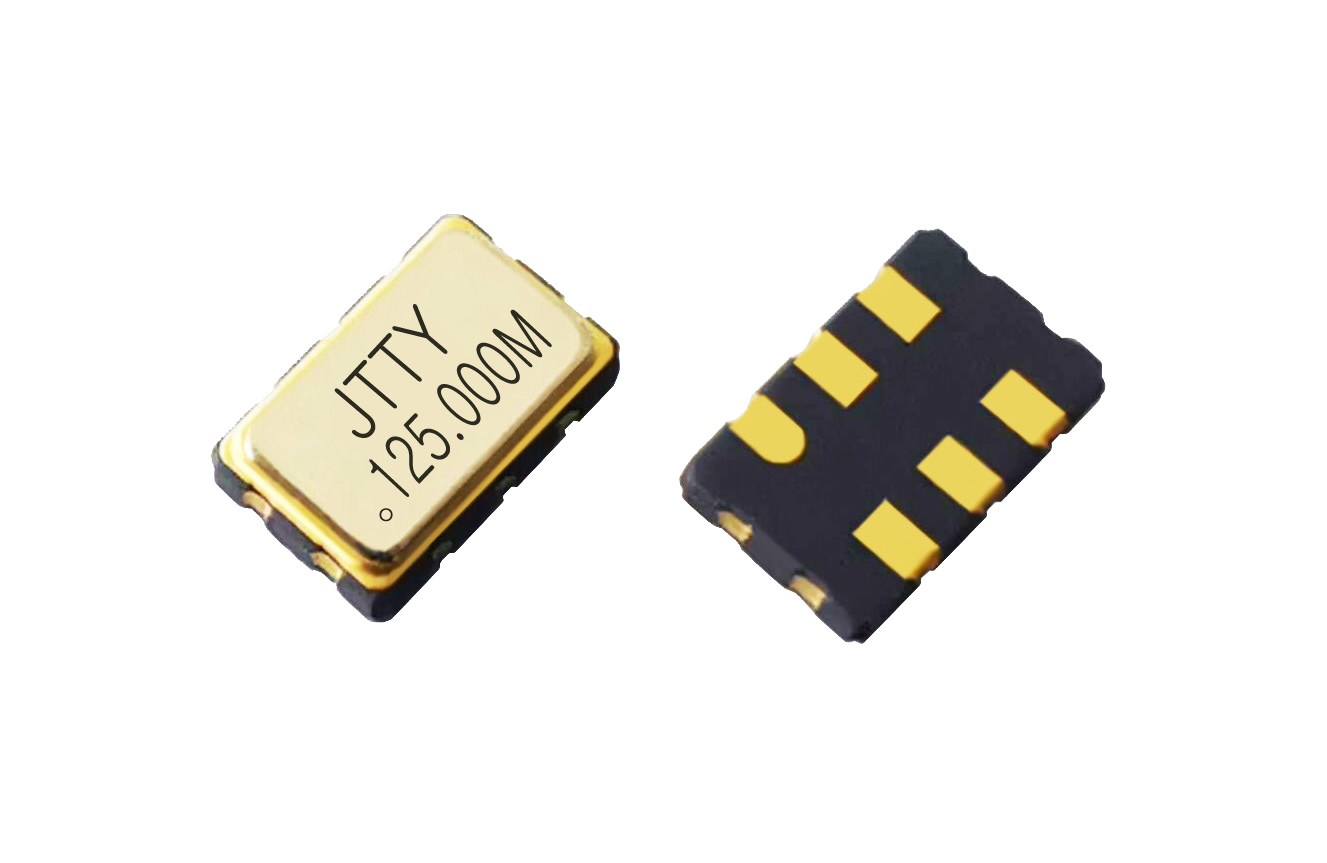

OS53 Package Size：5.0*3.2*1.25;Frequency：10MHz~1500MHz;Supply Voltage：2.5V、3.3V;Frequency stability：±5ppm~±50ppm;Output Leve：LVPECL、LVDS;working temperature：-55℃~+125℃;

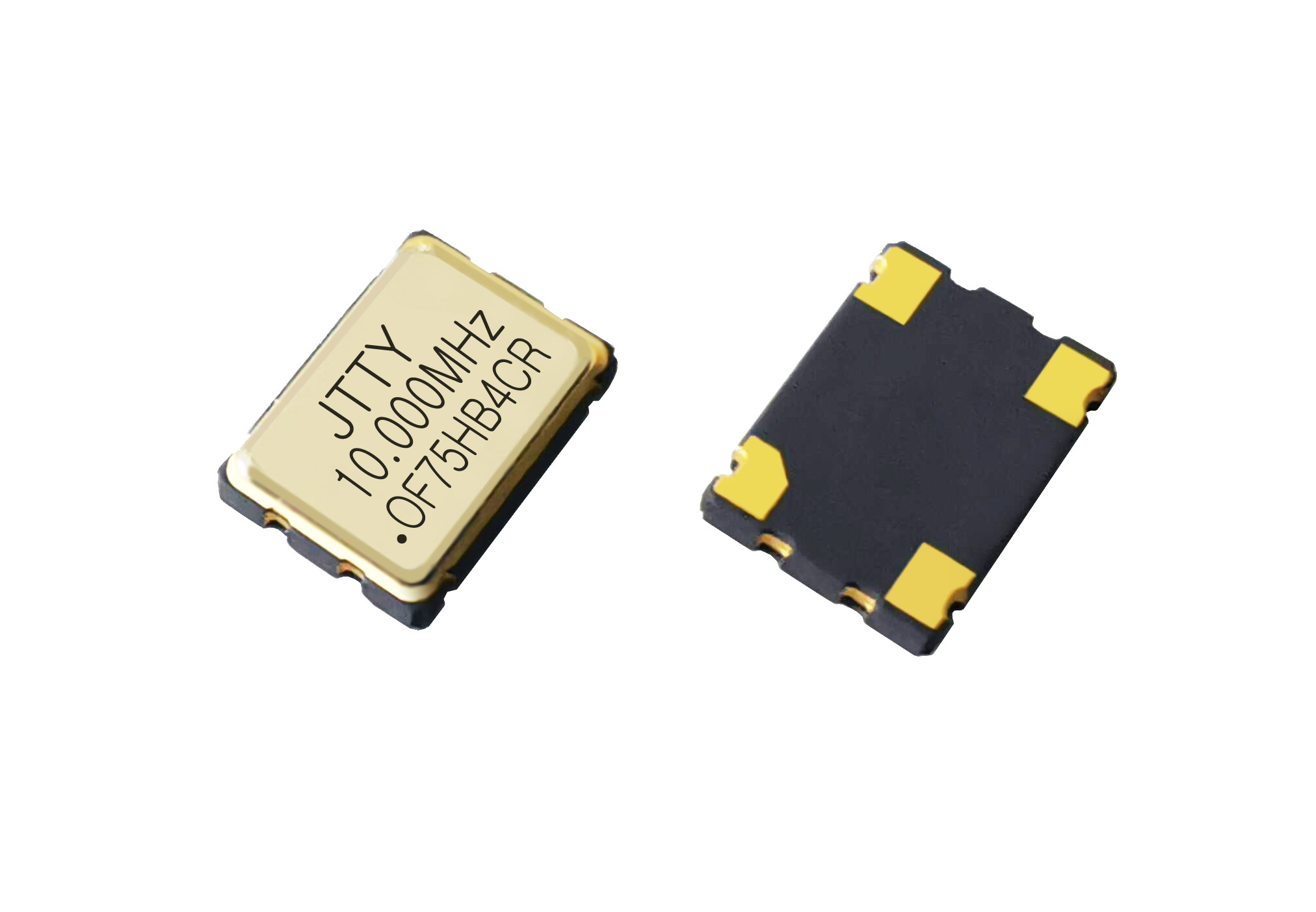

OF75 Package Size：7.0*5.0*1.3;Frequency：32.768KHz~220MHz;Supply Voltage：1.8V~5V;Frequency stability：±5ppm~±50ppm;Output Leve：HCMOS/TTL;working temperature：-55℃~+125℃;

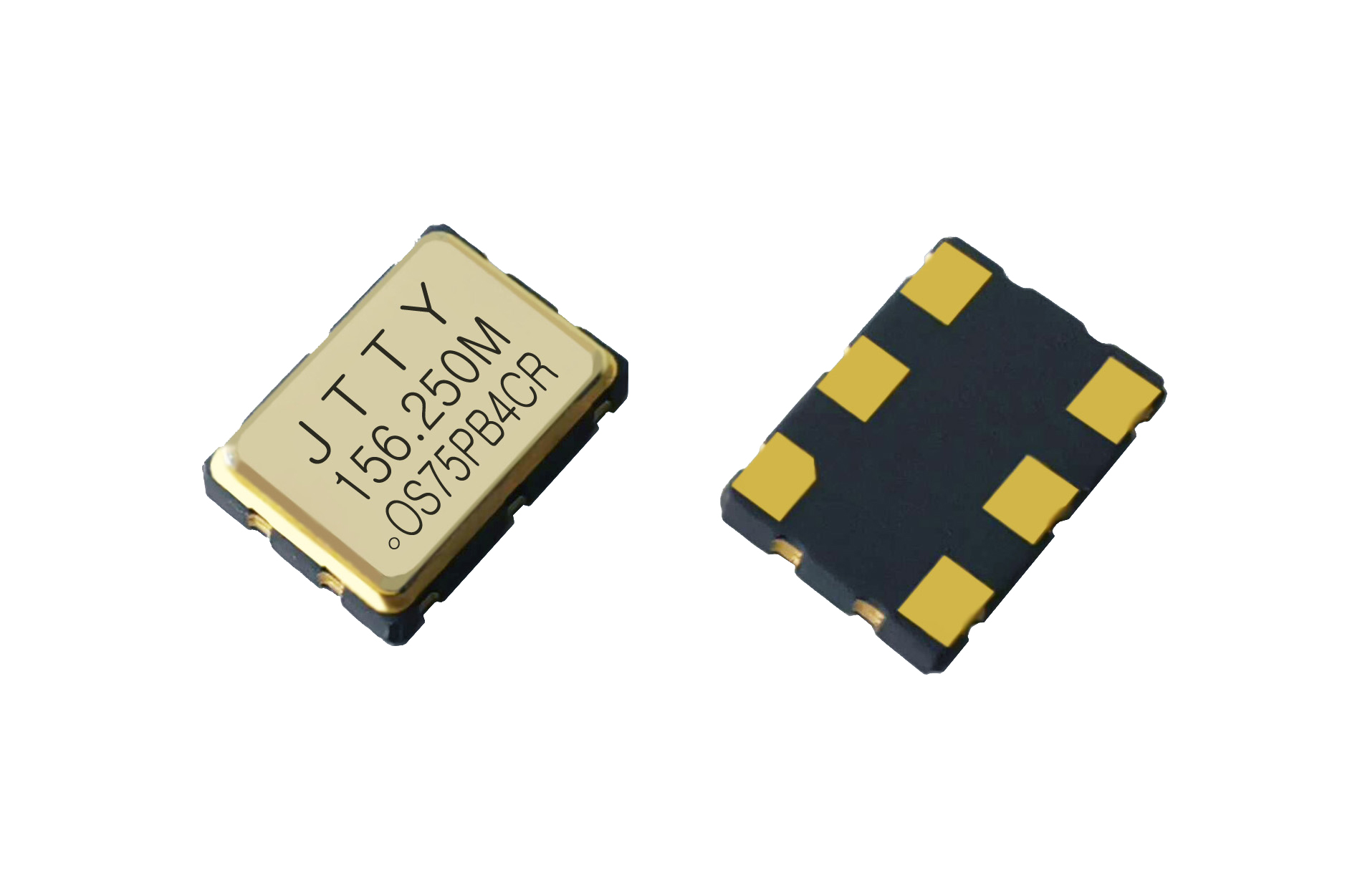

OS75 Package Size：7.5*5.0*1.6;Frequency：10MHz~1500MHz;Supply Voltage：2.5V、3.3V;Frequency stability：±5ppm~±50ppm;Output Leve：LVPECL、LVDS;working temperature：-55℃~+125℃;
OE75 Package Size：7.0*5.0*1.8;Frequency：32.768KHz~220MHz;Supply Voltage：1.8V~5V;Frequency stability：±15ppm,±25ppm,±50ppm,±100ppm;Output Leve：LVPECL、LVDS、HCSL、CML;working temperature：-55℃~+125℃;
All of 10 Results
